名稱： 研究級氙燈光源LH75-300W
型號： LH系列
品牌： 努美科技/Sciencetech
特征
? 垂直或水平燈泡和外殼操作
? 氙弧燈功率從75W到300W
? 多種尺寸，材料和涂層的多個準直或聚焦輸出光學器件
? 人性化設計
? **可用配件
? 標準安全聯鎖
應用領域
? 涂料耐久性測試
? 光生物學
? 光化學
? 光譜學

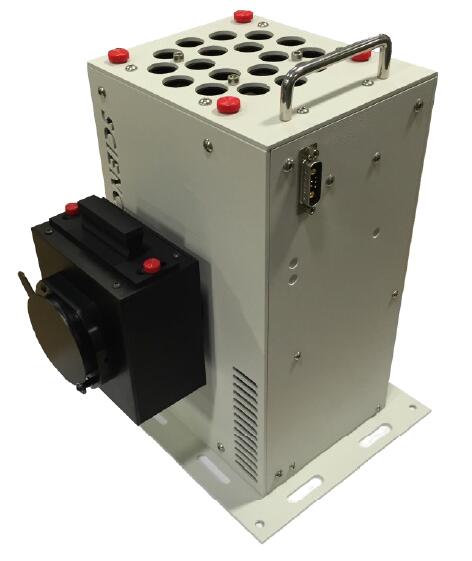

1、總覽
Sciencetech為研究應用提供了多種弧光燈源。短弧燈是高壓放電燈。這些燈因其高輻射和高亮度而特別適合于光學應用。放電電弧在兩個電極之間自由燃燒產生光。電弧的長度取決于兩個電極之間的距離，通常只有幾毫米。這使得弧光燈成為理想的點光源。
這本小冊子重點介紹了Sciencetech的氙弧燈光源，燈殼內充滿高壓氙氣，可提供廣泛的照明波長。
您可以從第4頁的便捷包裝中選擇一種（包括光學器件，外殼，燈泡和電源以及所有互連），也可以從我們的模塊化組件中構建自己的組件，從而**滿足您的要求。設計為可在垂直或水平模式下運行，并且隨附有用于兩個方向的基板。在下面的配置部分中，根據反射器類型（準直輸出為球形，聚焦光束為橢圓形）和所需的弧光燈選擇外殼，并添加兼容的電源和燈。**后，添加適合您的應用的光學器件。有關一些預配置的軟件包，請參見手冊。
2、配置-燈箱
選擇信息
-S球面反射鏡和透鏡集合-Sciencetech小系列太陽模擬器的標準配置！
-E橢圓形反射鏡系列，F(xiàn) / 4.5，設計簡單，可與Sciencetech的光纖太陽模擬器一起使用！
2，配置-輸出光學
Sciencetech的準直（COL）和成像（IO）光學組件系列提供多種光學耦合選項。 下表提供了有關鏡頭組件配置和所用鏡頭材料的信息。 COL光學元件安裝在75毫米長的鏡筒中。 根據選擇的配置，IO光學器件可能會插入長度大于或小于75mm的透鏡套管中。
| COL—Collimating Line of Optical Assemblies | |||||
| Optic Family | Model | Aperture Ratio (F/#) | Standard Material | Spectral Range | Description |
| COL | -A | ¥1.50 | Fused Silica | 230-2500nm | Single planoconvex spherical lens. |
| -B | ¥1.00 | Fused Silica | 230-2500nm | Two lens system (minimizes spherical aberration). | |
| -C | ¥0.60 | BK7 | 360-2500nm | Aspheric system for maximum throughput and minimal spherical aberration with a 1 lens system. | |
| -D | ¥0.70 | Fused Silica | 230-2500nm | Three lens system, best compensation of spherical aberration. Recommended for high quality collimation. | |
| IO—Imaging Optics Line of Optical Assemblies | |||||
| Optic Family | Model | Aperture Ratio (F/#) | Standard Material | Spectral Range | Description |
| IO | -A | Varies | Fused Silica | 230-2500nm | Single planoconvex spherical lens. |
| -B | Varies | Fused Silica | 230-2500nm | Two lens system (minimizes spherical aberration). | |
| -C | Varies | BK7 | 360-2500nm | Aspheric system for maximum throughput and minimal spherical aberration with a 1 lens system. | |
| -D | Varies | Fused Silica | 230-2500nm | Three lens system optimized for best compensation of spherical aberration. Recommended for very high quality imaging. | |

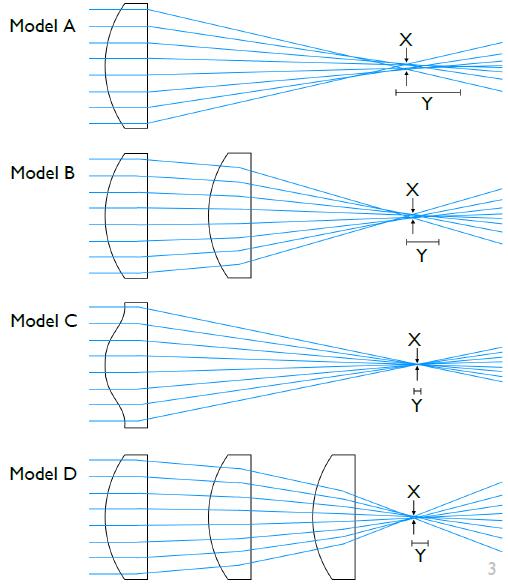

A型-單平凸球面透鏡：**簡單，成本**低的選擇，但聚焦時光斑尺寸**，而準直時光斑質量**差。
B型-兩透鏡系統：一種中間選件，聚焦后的光斑尺寸小于A型，并且準直時的準直度更高。
C型-單非球面透鏡：校正球面像差的**選擇，Y聚焦時**小光斑尺寸（X），準直時具有**質量準直。 僅適用于BK7或類似玻璃。
D型-三透鏡系統：一種高質量的選件，與Model A或Model B相比，聚焦時的光斑尺寸更小，或者在準直時具有更高的質量準直。它的材料范圍也比Model C多。
X =**小模糊圓（斑點大?。?/p>
Y =縱向球差
2.配置-輸出光學
在確定適合您的應用的準直光學器件或準直和成像光學器件之后，請使用下表在每個領域中為您的應用選擇**的折射光學器件。 此外，在需要反射光學元件的應用中，準直鏡選件有**和鋁保護膜可供選擇（請參閱第5頁）。 如果您在下表中找不到適合您的應用的光學元件，請與我們聯系！ 可根據要求提供許多其他選項。
配置-輸出光學-準直
從以下選項中為您的應用選擇準直光學鏡的透鏡配置，直徑和材料。 以下是示例訂單：COL-A-1-FS該示例訂單包含具有單平凸透鏡配置，直徑25.4 mm且由熔融石英制成的準直光學器件。
| Example: COL | A | I | FS | ||||
| Model Number | Lens Configuration | Diameter2 | Material Options3 | ||||
| Code | Description | Code | Description | Code | Description | Code | Description |
| COL | Collimating Optics | A | Single lens | 1 | 25.4mm diameter optics | -UV | UV Fused Silica |
| B | Two lens system | 2 | 50.8mm diameter optics | -FS | Fused Silica | ||
| C | Aspheric lens system1 | -G | BK7 Glass or Equivalent | ||||
| D | Three lens system | -CF | Calcium Fluoride Glass | ||||
配置-輸出光學-成像
從以下選項中選擇適合您應用的成像光學元件的孔徑比，透鏡配置，直徑和材料。 以下是示例訂單：IO-3.5-D-1-FS該示例訂單包含具有F / 3.5，三透鏡系統鏡頭配置，直徑25.4毫米，由熔融石英制成的成像光學元件。
| Example: IO | 3.5 | D | I | FS | |||||
| Model Number | F/# - Aperture Ratio | Lens Configuration | Diameter | Material Options | |||||
| Code | Description | Code | Description | Code | Description | Code | Description | Code | Description |
| IO |
Imaging Optics | #.# | F/# of the optical system | A | Single lens | 1 | 25.4mm diameter optics | -UV | UV Fused Silica4 |
| B | Two lens system | 2 | 50.8mm diameter optics | -FS | Fused Silica4 | ||||
| C | Aspheric lens system1 | -G | BK7 Glass or Equivalent4 | ||||||
| D | Three lens system | -CF | Calcium Fluoride Glass4 | ||||||
1.僅適用于BK7或類似玻璃。
2.確保如果引用了多組光學器件，則所有光學器件都是兼容的，例如，確保所有光學器件的直徑相同。
3.添加可選項目將在銷售訂單上顯示為自定義訂單項。
4.可選配厚度優化為550nm的MgF2單層抗反射涂層。
2.配置－輸出光學－材料選擇

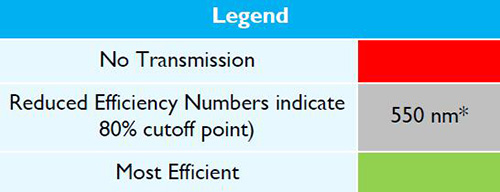

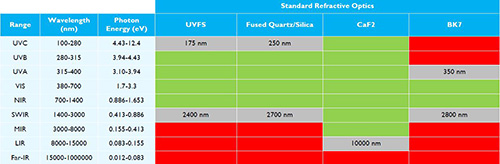

可以選擇不同的材料在不同的波長范圍內傳輸。 下表中列出了一些**常見的選項，以快速參考每種材料的**有用范圍。
如果您在下表中找不到適合您的應用的光學元件，請與我們聯系！ 可根據要求提供許多其他選項。
2.配置－輸出光學－反射光學
| MR6 Collimating Mirror Options | |||||
| Model | Aperture Ratio (F/#) | Clear Aperture | Reflective Surface | Spectral Range | Description |
| MR64 | 4 | 25 mm | Protected Aluminum | 400nm-20µm | 25mm diameter F/4 off-axis parabolic mirror with protected aluminum coating on a kinematic adjustable mount. |
| MR64-G | 4 | 25 mm | Gold | 360nm—Far IR | Gold-coated 25mm diameter F/4 off-axis parabolic mirror on a kinematic adjustable mount. |
| MR62 | 2 | 50 mm | Protected Aluminum | 400nm-20µm | 50mm diameter F/2 off-axis parabolic mirror with protected aluminum coating on a kinematic adjustable mount. |
| MR62-G | 2 | 50 mm | Gold | 360nm—Far IR | Gold-coated 50mm diameter F/2 off-axis parabolic mirror on a kinematic adjustable mount. |
Sciencetech的MR6準直鏡系列產品是安裝在外殼中的離軸拋物面鏡，該附件可以通過OAP安裝附件連接到任何LH系列燈外殼。 MR6外殼包括一個三點可調式運動學安裝座，該安裝座上帶有細間距的螺釘，以優化輸出光學器件與弧光燈的對準。
2.配置-輸出光學-應用程序配置

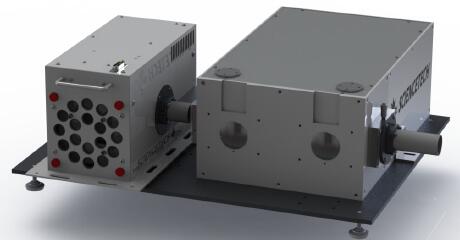

若要將Sciencetech LH系列燈罩與Sciencetech的單色儀之一配合使用，首先需要將光從燈罩中準直，然后通過將成像光學器件與單色儀匹配的F耦合到單色儀中。 有關將LH系列弧光燈源與某些Sciencetech流行的單色儀耦合的準直和成像光學器件，請參見下表。
| Monochromator Model | Monochromator F/# | Collimating Optics | Imaging Optics |
| 9055F | 2.5 | COL-A-1-FS | IO-2.5-D-1-FS |
| 9010F | 2.6 | COL-A-1-FS | IO-2.6-D-1-FS |
| 9030 | 3.2 | COL-A-1-FS | IO-3.2-D-1-FS |
| 9072/9055 | 3.5 | COL-A-1-FS | IO-3.5-D-1-FS |
| 9040 | 4 | COL-A-1-FS | IO-4.0-D-1-FS |
| 9040 | 5.2 | COL-A-1-FS | IO-5.2-D-1-FS |
| 9057F | 5.9 | COL-A-1-FS | IO-5.9-D-1-FS |
| 9040 | 6.9 | COL-A-1-FS | IO-6.9-D-1-FS |
| 9490 | 7.4 | COL-A-1-FS | IO-7.4-D-1-FS |
| 9057 | 8 | COL-A-1-FS | IO-8.0-D-1-FS |
| 9490 | 9.7 | COL-A-1-FS | IO-9.7-D-1-FS |
| 9490 | 12 | COL-A-1-FS | IO-12.0-D-1-FS |
| 9150 | 13 | COL-A-1-FS | IO-13.0-D-1-FS |
| EXAMPLE ORDER, 300W TUNABLE LIGHT SOURCE: | |
| LH-S-300X | (101-9001) |
| XE300 | (650-0050) |
| 601-300 | (150-9100) |
| COL-A-1-FS | (110-9001) |
| IO-3.5-D-1-FS | (110-XXXX) |
Sciencetech的LH系列燈罩配置為300W Xe弧光燈，300W無臭氧Xe弧光燈，兼容的300W Xe弧光燈觸摸屏電源，準直25.4毫米直徑熔融石英光學元件和與Sciencetech的f匹配的熔融石英成像光學元件 9055。
3.燈的選擇

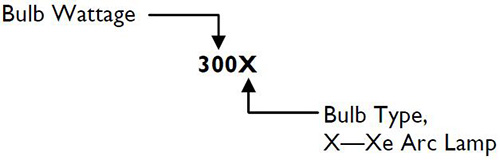

氙弧燈需要作為單獨的訂單項包含在您的訂單中。以下信息應用于幫助為您的燈罩配置和應用選擇合適的弧光燈！
| Lamp Housing | Compatible Bulb Model | Bulb Wattage | Spectral Range | Ozone Producing |
| -300X | XE300 | 300W | 250-2500 nm | NO |
| -300X | XE300-UV | 300W | 200-2500 nm | YES |
| -150X | XE150 | 150W | 250-2500 nm | NO |
| -150X | XE150-UV | 150W | 200-2500 nm | YES |
| -100X | XE100 | 100W | 250-2500 nm | NO |
| -075X | XE075 | 75W | 250-2500 nm | NO |
氙燈光譜
4.電源
Sciencetech的601系列電源是與Sciencetech的LH系列燈箱配合使用的兼容電源。 訂購時，請確保您的電源型號與系統的弧光燈功率匹配。
| Bulb Type | Power Supply Model |
| -300X | 601-300 |
| -150X | 601-150 |
| -100X | 601-100 |
| -075X | 601-075 |
Sciencetech 601隨附的標準功能
–系列電源：
? 觸摸屏界面
? 快門和曝光控制（如果提供了電子快門*）
? 用于燈泡電源，冷卻和通信的單連接
? 燈泡啟動和計時器日志
? 風扇冷卻安全聯鎖
? RS232計算機控制軟件GUI
*高速百葉窗需要單獨的控制器
可選升級：
? 溫度監控器
? 光學反饋
? 遠程燈狀態監控
? 自動燈啟動
5.配件
Sciencetech為您的光源外殼配備了許多配件，例如與Sciencetech的各種光譜濾光片配合使用的濾光盒或朝下的支架。
下表列出了與LH系列外殼兼容的Sciencetech附件，因此您可以根據自己的應用量身定制Sciencetech系統。
| Model | SKU | Description | |
| Filter Boxes | FH2-1 | 100-8010 | One position filter box for 2” (50 mm) filters—uncooled |
| FH1-1 | 100-8011 | One position filter box for 1” (25 mm) filters—uncooled | |
| FH3-1 | 100-8012 | One position filter box for 3” (75 mm) filters—uncooled | |
| FH1-2 | 100-8013 | Two position filter box for 1” (25 mm) filters—uncooled | |
| FH3-2 | 100-8014 | Two position filter box for 3” (75 mm) filters—uncooled | |
| Variable Focus Assemblies | VF2 | 100-8046 | Variable focus optical assembly, 2” diameter BK7 optics |
| VF2-UV | 100-8047 | Variable focus optical assembly, 2” diameter fused silica optics | |
| Beam Turners | CTBT-2 | 160-9005 | Beam turning assembly for LH series light sources |

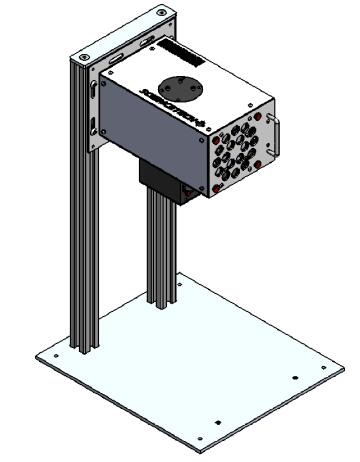

| Stands | LH-DFS | 100-8015 | Downward facing stand for LH series light sources |
| Fiber Couplings | FBC-1 | 100-8028 | Fiber bundle coupler, non SMA, 1” |
| FBC-2 | 100-8029 | Fiber bundle coupler, non SMA, 2” | |
| FBC-SMA-2 | 100-8030 | SMA fiber coupler, 2” flange | |
| FBC-SMA-1 | 100-8031 | SMA fiber coupler, 1” flange | |
| Shutters | MS-2 | 160-8040 | Manual Shutter for 2” Output Optics |
| SH-HS | 165-8033 | High speed shutter for LH series light sources and SF/SLB solar simulators |
6，尺寸
| Overall H x W x L | 170 x 182.9 x 322.6 mm |
| Weight | 5 kg |
| Optical Height | 68.6 mm or 80-100 mm |
| Mounting Options | 1/4-20 leveling feet—M6-M8 through holes—76.2 mm spacing |
7，訂購信息
| Model | SKU | Description |
| LH-S-300X | 101-9001 | LH– series lamp house with spherical back reflector for 300W xenon arc lamps. |
| LH-S-150X | 101-9002 | LH– series lamp house with spherical back reflector for 150W xenon arc lamps. |
| LH-S-100X | 101-9003 | LH– series lamp house with spherical back reflector for 100W xenon arc lamps. |
| LH-S-075X | 101-9004 | LH– series lamp house with spherical back reflector for 75W xenon arc lamps. |
| LH-E-300X | 101-9005 | LH– series lamp house with elliptical back reflector for 300W xenon arc lamps. |
| LH-E-150X | 101-9006 | LH– series lamp house with elliptical back reflector for 150W xenon arc lamps. |
| LH-E-100X | 101-9007 | LH– series lamp house with elliptical back reflector for 100W xenon arc lamps. |
| LH-E-075X | 101-9008 | LH– series lamp house with elliptical back reflector for 75W xenon arc lamps. |
| 601-300 | 150-9100 | Power supply for LH– series housing and 300W xenon arc lamp. |
| 601-150 | 150-9101 | Power supply for LH– series housing and 150W xenon arc lamp. |
| 601-100 | 150-9102 | Power supply for LH– series housing and 100W xenon arc lamp. |
| 601-075 | 150-9103 | Power supply for LH– series housing and 75W xenon arc lamp. |
| XE300 | 650-0050 | 300W xenon arc lamp, non-ozone producing. |
| XE150 | 650-0091 | 150W xenon arc lamp, non-ozone producing. |
| XE150-UV | 650-0084 | 150W xenon arc lamp, ozone producing. |
| XE100 | 650-0028 | 100W xenon arc lamp, non-ozone producing. |
| XE075 | 650-0007 | 75W xenon arc lamp, non-ozone producing. |
| 601-CABLE | 150-7007 | Replacement power supply cable for 601– series power supply and LH– series housing. |
8，光源套件
我們方便的光源套件包括燈罩，光學組件，電源和燈泡，這是您開始使用研究級光源所需的一切。
還有許多其他選項可供選擇，因此，如果這些軟件包不能**滿足您的需求，請聯系Sciencetech技術**以獲取更多選項。
| Product Code | Description of Research Grade Arc Lamp Source | Collimated or Focused | Power (W) | Aperture Ratio (F/#) | Lens Type | Clear Aperture (mm) | Material |
| 101-9101 | 75 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.5, Single Lens, Fused Silica, O3-free | Collimated | 75 | 1.5 | A | 25.4 | FS |
| 75 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.0, Two Lens System, Fused Silica, O3-free | Collimated | 75 | 1 | B | 25.4 | FS | |
| 75 W Collimated Research Grade Arc Lamp Source, 1 inch, F/2.0, Single Lens, Fused Silica, O3-free | Collimated | 75 | 2 | A | 25.4 | FS | |
| 75 W Collimated Research Grade Arc Lamp Source, 1 inch, F/0.6, Aspheric Lens, Glass, O3-free | Collimated | 75 | 0.6 | C | 25.4 | G | |
| 75 W Collimated Research Grade Arc Lamp Source, 1 inch, F/0.7, Three Lens System, Fused Silica, O3-free | Collimated | 75 | 0.7 | D | 25.4 | FS | |
| 150 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.5, Single Lens, Fused Silica, O3-free | Collimated | 150 | 1.5 | A | 25.4 | FS | |
| 150 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.5, Single Lens, Fused Silica, O3-producing | Collimated | 150 | 1.5 | A | 25.4 | FS | |
| 150 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.0, Two Lens System, Fused Silica, O3-free | Collimated | 150 | 1 | B | 25.4 | FS | |
| 150 W Collimated Research Grade Arc Lamp Source, 1 inch, F/2.0, Single Lens, Fused Silica, O3-free | Collimated | 150 | 2 | A | 25.4 | FS | |
| 150 W Collimated Research Grade Arc Lamp Source, 1 inch, F/0.6, Aspheric Lens, Glass, O3-free | Collimated | 150 | 0.6 | C | 25.4 | G | |
| 150 W Collimated Research Grade Arc Lamp Source, 1 inch, F/0.7, Three Lens System, Fused Silica, O3-free | Collimated | 150 | 0.7 | D | 25.4 | FS | |
| 150 W Collimated Research Grade Arc Lamp Source, 2 inch, F/1.5, Single Lens, Fused Silica, O3-free | Collimated | 150 | 1.5 | A | 50.8 | FS | |
| 150 W Collimated Research Grade Arc Lamp Source, 2 inch, F/1.5, Single Lens, Fused Silica, O3-producing | Collimated | 150 | 1.5 | A | 50.8 | FS | |
| 150 W Collimated Research Grade Arc Lamp Source, 2 inch, F/1.0, Two Lens System, Fused Silica, O3-free | Collimated | 150 | 1 | B | 50.8 | FS | |
| 150 W Collimated Research Grade Arc Lamp Source, 2 inch, F/2.0, Single Lens, Fused Silica, O3-free | Collimated | 150 | 2 | A | 50.8 | FS | |
| 150 W Collimated Research Grade Arc Lamp Source, 2 inch, F/0.6, Aspheric Lens, Glass, O3-free | Collimated | 150 | 0.6 | C | 50.8 | G | |
| 150 W Collimated Research Grade Arc Lamp Source, 2 inch, F/0.7, Three Lens System, Fused Silica, O3-free | Collimated | 150 | 0.7 | D | 50.8 | FS | |
| 300 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.5, Single Lens, Fused Silica, O3-free | Collimated | 300 | 1.5 | A | 25.4 | FS | |
| 300 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.5, Single Lens, Fused Silica, O3-producing | Collimated | 300 | 1.5 | A | 25.4 | FS | |
| 300 W Collimated Research Grade Arc Lamp Source, 1 inch, F/1.0, Two Lens System, Fused Silica, O3-free | Collimated | 300 | 1 | B | 25.4 | FS | |
| 300 W Collimated Research Grade Arc Lamp Source, 1 inch, F/2.0, Single Lens, Fused Silica, O3-free | Collimated | 300 | 2 | A | 25.4 | FS | |
| 300 W Collimated Research Grade Arc Lamp Source, 1 inch, F/0.6, Aspheric Lens, Glass, O3-free | Collimated | 300 | 0.6 | C | 25.4 | G | |
| 300 W Collimated Research Grade Arc Lamp Source, 1 inch, F/0.7, Three Lens System, Fused Silica, O3-free | Collimated | 300 | 0.7 | D | 25.4 | FS | |
| 300 W Collimated Research Grade Arc Lamp Source, 2 inch, F/1.5, Single Lens, Fused Silica, O3-free | Collimated | 300 | 1.5 | A | 50.8 | FS | |
| 300 W Collimated Research Grade Arc Lamp Source, 2 inch, F/1.5, Single Lens, Fused Silica, O3-producing | Collimated | 300 | 1.5 | A | 50.8 | FS | |
| 300 W Collimated Research Grade Arc Lamp Source, 2 inch, F/1.0, Two Lens System, Fused Silica, O3-free | Collimated | 300 | 1 | B | 50.8 | FS | |
| 300 W Collimated Research Grade Arc Lamp Source, 2 inch, F/2.0, Single Lens, Fused Silica, O3-free | Collimated | 300 | 2 | A | 50.8 | FS | |
| 300 W Collimated Research Grade Arc Lamp Source, 2 inch, F/0.6, Aspheric Lens, Glass, O3-free | Collimated | 300 | 0.6 | C | 50.8 | G | |
| 300 W Collimated Research Grade Arc Lamp Source, 2 inch, F/0.7, Three Lens System, Fused Silica, O3-free | Collimated | 300 | 0.7 | D | 50.8 | FS | |
| 150 W Focused Research Grade Arc Lamp Source, 2 inch, F/4.5, O3-free | Focused | 150 | 4.5 | - | 50.8 | - | |
| 300 W Focused Research Grade Arc Lamp Source, 2 inch, F/4.5, O3-free | Focused | 300 | 4.5 | - | 50.8 | - |
